Convoy C8 Shortwave UV LED Flashlight
US Patent #7781751
Product Features
- High performance shortwave ultraviolet LED

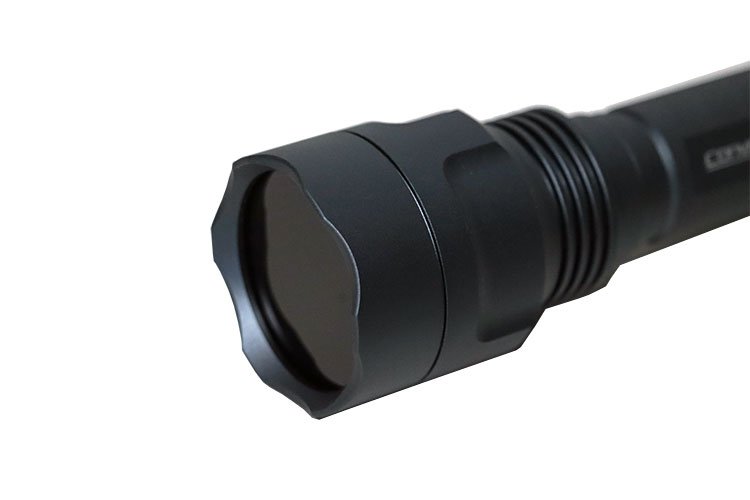

- 1-3/4" inch head with 39mm ZWB2 glass filter pre-installed

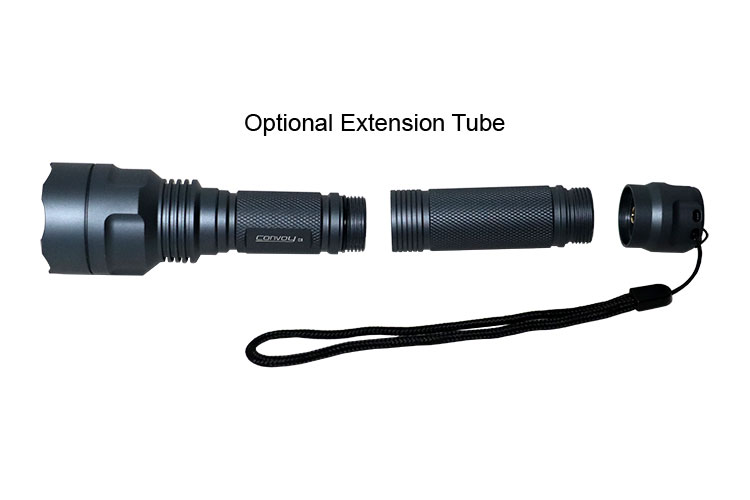

- Optional extension tube allows for 2 18650 Lithium Ion batteries for additional runtime
- Increased 100 milliwatt output via boost driver
- Waterproof standard IP-65 protects the unit from accidental water immersion
- Ergonomic knurling pattern offers a comfortable yet secure grip
- Polished reflector emits excellent beam shape
Product Specifications

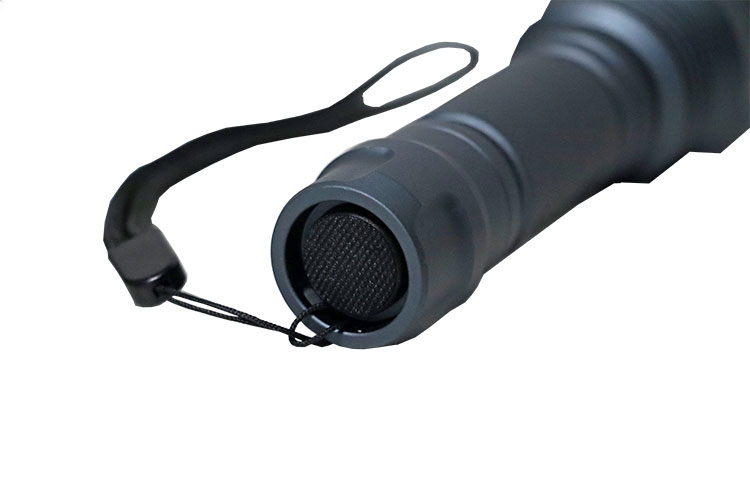

- ON/OFF Click switch in tail cap
- Battery one standard 18650 lithium-ion battery (protected)
- Output - 100 milliwatts
- Dimensions 5.5" long (8.5" with extension) x 15/16" diameter (body)
- Weight approximately 180g
Convoy C8 Shortwave UV Flashlight Price
| Description | Part Number | Price (Each) |
|---|---|---|
| Convoy C8 Shortwave UV LED Flashlight(black) (Includes filtered flashlight, one 18650 battery and a charger). |
C8SWUVLED | $140.00 |
| Extension Tube and 1 additional 18650 battery | -- | $10.00 ea. |
Product Description
Harness the incredible power of shortwave UV with this custom flashlight! The actual manufacturer of the Convoy S2+ UV flashlights has created a filtered UV flashlight specifically for Way Too Cool (WTC) using the Convoy C8 host. This flashlight's standard package consists of the filtered flashlight, one 18650 battery and a charger.
IMPORTANT NOTICE
This is a high-performance light and is not intended for continuous use because the LED WILL overheat and burn out if the light is left on continuously for too long. The flashlight sheds the excess heat to the surrounding air - so if it is cold out - say less than 55 degrees F, the flashlight may be operated for much longer periods of time than if the surroundings are room temperature. When the head of the flashlight feels hot to the touch, turn the flashlight off and let it cool for a few minutes. Just turn it on when looking, off when not. Don't make the mistake of putting it in your pocket when it is turned on.Except for the LED itself, there is a standard 1 year warranty for the main components of the flashlight. Burned out LEDs are covered for a three-month warranty. If you burn out the LED after three months, you can ship the head of the flashlight to Way Too Cool at your expense, and for a fee of $18.00, WTC will replace the LED and ship the head back to you.
Our Convoy C8+ UV has several important differences from a standard Convoy C8 white light. It is custom-manufactured by Convoy exclusively for sale in the USA by William Gardner/Way Too Cool, LLC, and WTC dealers. This flashlight includes a ZWB2 filter glass pre-installed. It uses a high quality ultraviolet LED, the same one found in our Convoy S2+ UV flashlights. The C8 has a 1500mA buck driver driven at 7.4VDC (when used with two RCR123A/16340 rechargeable batteries OR with two 18650 rechargeable batteries with the optional extension tube).
SAFETY WARNING
The LED is a Class 3B LED hazard. Do NOT look directly into the beam of the flashlight and do not point it towards any eyes.Built to Waterproof Standard IP-65, the unit is safe from accidental water immersion, the Ergonomic Knurling Pattern offers a comfortable, secure grip, and the reflector emits excellent beam shape. The flashlight has an ON/OFF Click switch in the tail cap, and it has a Lanyard. The power supply is one protected 18650 lithium-ion battery, or two batteries with the optional extension tube.
Testing shows that the C8 light is slightly more powerful than the Convoy 6/3 offered by Way Too Cool Dealers. This new flsahlight appears to be brighter than the 6 watt Convoy S2+ UV flashlight because the reflector is larger and is shaped differently (and there is a larger filter glass). It is able to fluoresce a sample of Greenland fluorescent sodalite at a distance of approximately 80 feet. The light has a 1-3/4" diameter head and a polished reflector that focuses the UV output to an intense, but smooth "spot" with a range of 80 feet for finding specimens up close or quite far away. The intensity of the beam is strong enough to cause fluorescence in materials that do not fluoresce very well under the normal UV A tubes used in standard UV lamp fixtures.
Battery and Charging Information
Some of the WTC Dealers offer different options for the batteries and the charger. When purchased directly from WTC, the flashlight set comes with two protected rechargeable Li-ION batteries, the filter pre-installed, the extension tube, and a charger for 2 batteries. The flashlight needs protected batteries so if one battery is dead and the other is fully charged, there will not be high current flows that might overheat the wiring. Using the 18650 Li-ION batteries that are supplied with the flashlight when you buy directly from WTC, the flashlight provides approximately 1.5 hours of use on a charge per set of batteries.
The batteries will arrive partially discharged because of postal regulations and the batteries should be charged prior to use. Please be aware that some manufacturers claim that their 18650 batteries are rated for up to 9,900 mAh and that any value over 3,500 mAh should be suspected of exaggerating.
The set also comes with a simple-to-use Li-ION smart charger with fold-away US style prongs. While the batteries are charging the LED will be red. When the batteries are fully charged, the LED turns a solid green and the batteries should be removed from the charger. If you have questions about the charger, please contact us with your concerns.
Customer Videos
Check out this video from one of our customers showcasing the C8 flashlight.
Patent Information
William Gardner has US Patent #7781751 for the use of colored glass absorption filters (and other kinds of wavelength changing absorption filters for use with UV LED battery operated devices). If someone imports, makes, uses, offers to sell, or sells filtered UV LED flashlights in the U.S., using colored glass absorption filters such as Hoya glass, Kokomo glass, or ZWB2 glass, they are infringing US Patent #7781751. William Gardner has authorized Way Too Cool, LLC to use his patent and he is willing to license the use of the patent to other manufacturers of filtered UV LED Flashlights and similar UV battery operated devices. If you buy a filtered UV flashlight or other similar battery operated product that does NOT have U.S. Patent number 7781751 on it - please be aware that it is COUNTERFEIT and that selling it, or purchasing it, infringes on the patent and is illegal.
United States Code: Infringement of Patents, 35 U.S.C. § 271-272
(a) Except as otherwise provided in this title, whoever without authority makes, uses, offers to sell, or sells any patented invention, within the United States, or imports into the United States any patented invention during the term of the patent therefor, infringes the patent.
(b) Whoever actively induces infringement of a patent shall be liable as an infringer.
(c) Whoever offers to sell or sells within the United States or imports into the United States a component of a patented machine, manufacture, combination, or composition, or a material or apparatus for use in practicing a patented process, constituting a material part of the invention, knowing the same to be especially made or especially adapted for use in an infringement of such patent, and not a staple article or commodity of commerce suitable for substantial non-infringing use, shall be liable as a contributory infringer.
